Low voltage

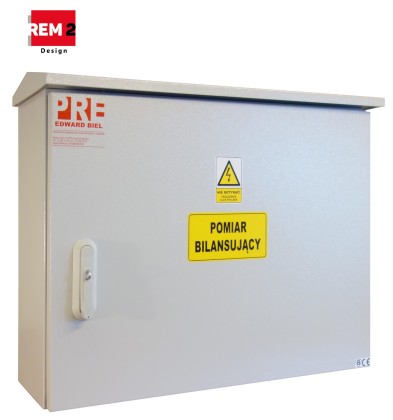

MBS – Balancing measurement cabinets
Application
- To low-voltage distribution cable networks.
- Measurement of electricity and protection of the metering system against the effects of short circuits and overloads on the LV side.
Housing
- Aluminum OU-2: Housing made of aluminum sheet (joining by welding or riveting). Powder coated in any color. Dimensions adapted to the type, amount of equipment and individual customer needs. The housing has high resistance to degradation, environmental impact and UV radiation. The housing is made in protection class I or II. Protection class II of the enclosure is achieved by applying an additional insulating layer, permanently lined on the inner and outer surfaces of the enclosure. The thickness of the layer ensures the right degree of insulation.
- Ventilation allows constant air flow through the use of a ventilation labyrinth, while eliminating the ingress of dirt and the accumulation of water and moisture. Doors having internal hinges with anti-burglary catch and multi-point locking, basquil lock lockable with padlock or system cylinder.
- Thermosetting plastic: The enclosure is made of SMC plastic with IP 44 or 54. In the II protection class, with a flammability class from HB to V0, in RAL 7035 color, with the possibility of additional varnishing to ensure temporary vod resistance to environmental effects and UV radiation.
Measuring and balancing part
- Measuring and balancing part tailored to individual requirements.
- Metering board suitable for mounting active and reactive energy meters mounted on an insulating plastic plate, made in a tilting or fixed version.
- Control and measurement strip designed to connect voltage and current circuits of electricity meter with secondary circuits of measuring transformers, available apparatus: Ska, LPW, others.
- Remote reading of meter data via GPRS wireless network or fiber optic cable.
- The place intended for the installation of a concentrator – a system for the acquisition and transmission of measurement data in the selected Smart Grid & Smart Metering technology.
- Sealable components.
Current transformers
- Current transformers matched to the transformer load.
- In class 0.2s – 1, mounted on a rail or wire, behind the main protection of the set. It is possible to mount transformers on each outlet circuit.
- Cables connecting the transformer to the MBS cabinet – are selected according to the distance between them.
Frequently asked questions
What is your delivery time?
Standard delivery time is approximately 6-8 weeks depending on the order. Please contact us to arrange a more detailed delivery date.
What effects do your charging stations have?
We offer an extensive range of products, encompassing both AC and DC EV chargers featuring diverse equipment configurations and power outputs. The power spectrum of our EV chargers includes:
- AC 3.7-43 kW
- DC 40-480 kW
Who installs charging stations?
Charging stations are only installed by Swedish certified electricians.
How fast do your stations charge?
The fastest DC chargers can charge a car in up to half an hour. Charging time for electric vehicles depends on:
- EV charger power
- battery capacity
- the power of the converter installed in the car.
Which station is best for private use?
The best choice for private use are small stations such as:
- EVB E-wall - mounted in the wall not only makes it much easier to use, but also blends almost seamlessly into the façade and improves its aesthetics.
- EVB Wallbox 2M AC - it can be hung on the wall in the garage, thanks to which it takes up little space and can charge two cars at the same time. Charging point power up to 22 kW.
How is the advertising content on EVB Adverts charging stations managed?
Advertising content on EVB Advert chargers is managed using the Digital Signage Android Player. It is an extremely functional software for remote management of content on the monitor. The software allows you to manage content from any place with Internet access - just log in to the relevant website, upload videos, images, webpages, RSS feeds, remote content, divide the screen into any number of screen areas of any size and position, and much more. The big advantage of Central Stacks software is that the server is in the cloud, so the client does not need to install and maintain it on its side, and therefore the content of any connected media can be managed anywhere and on any device by logging into the server through a web browser.
Our billing model for Central Stacks licenses is also very simple and transparent, unlike many other systems on the market, since the annual license price already includes all the costs incurred by the customer for the system including server maintenance, etc., so at each stage of the project the customer knows exactly how much it will cost him to expand the DS network with additional installations.
How to settle accounts with charger users?
Our stations are equipped with a measurement and billing system, which enables quick settlement with the customer. Settlements are made via mobile applications, RFID cards or a payment terminal.
What is the difference between charging a car with AC and DC?
In the simplest terms, the key distinction lies in the charging speed of the vehicle. In the case of alternating current (AC), the EV is usually charged slower compared to direct current (DC), because the alternating current needs to be converted, and the charging speed depends on how much current the wallbox can supply and how much current the vehicle battery can handle. Charging with alternating current is the most popular method of charging electric vehicles and is widely used, among others, while charging at home.
DC charging, on the other hand, is a faster charging option often used in public places using chargers with higher power outputs. Unlike AC charging, DC charging delivers direct current to the vehicle battery without a conversion process. The type of charging station you should install depends entirely on your needs and specific requirements. In public areas such as parking lots, a combination of AC and DC charging can provide a pragmatic solution to meet the diverse needs and preferences of different guests.
Are you nationwide?
Yes, we provide installations throughout Sweden, as well as in Europe.
