Low voltage

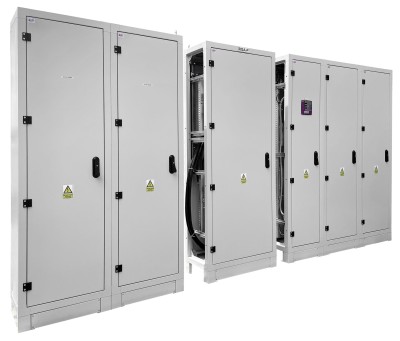

RP – Industrial switchgear up to 4000 A
RP industrial switchgear is characterized by simple and clear electrical connection layouts and has a design that guarantees safe operation. Thanks to the high degree of IP protection (IP 4X – IP 54), RP switchgears can be used directly next to machinery and equipment. A very important aspect in the construction of our switchboards is their reliability and easy expandability.
Main advantages
- Resistance to mechanical damage.
- Clear layout of connections.
- Safety of operation.
- Operational reliability.
- Easy expandability.
Equipment configurations
- A.MZ – power module – equipped with a disconnector (max. 4000 A) or power switch (max. 4000 A), having the ability to block opening under load, cable entry from above or below by means of rail or cable connections.
- B.MS – Coupling module – operation in SZR systems together with power supply modules, cable entry from above or below by means of rail or cable connections.
- B.MP – outflow module – Equipped with strip fuse disconnectors, box fuse disconnectors or power circuit breakers (from 160A to 1250A), available apparatuses: NSL, SL, ARS, LTL, SLBM, RBK, RB-2(s), others, insert size gr. 00 – 4.
- D.BK – reactive power compensation module – Inductive and capacitive reactive power compensation up to 400 kVar.
- E. other modules – Such as control or communications.
Dimensions
- Dimensions adapted to the type, amount of equipment and individual needs of the customer. Typical implementations:
- height: 1800/2000/2200 mm;
- width: 400/600/800/850/1000/1050/1250/1400 mm;
- depth: 250/300/400/600/800 mm.
Modular housing
- A small-sized, lightweight modular skeletal structure made of galvanized steel or aluminum profiles connected by cast connectors made of aluminum or polyamide, allowing tool-free connection of individual elements and ensuring adequate rigidity of the structure.
- High mechanical strength and a degree of protection that prevents the ingress of dust and mechanical damage.
- Fully shielded, covers made of steel sheet coated with anti-corrosion, powder coated in any color, made in a fixed or tilting version that allows inspection and examination with a thermal imaging camera.
- Internal space with separated parts: functional modules, current paths.
- Allows you to change the power supply side independently, either by repositioning the switchgear power module or swapping it with the metering module.
- Connection of individual modules made by screw connections (without riveting or welding) allows quick disassembly of modules, bringing the switchboard in modules to the place of foundation in the room (lack of space) and their reassembly.
- Set on an additional frame, matching the dimensions of the cable channel.
- The dimensions of the switchboard are arbitrary, adapted to the individual needs of the customer.
- Connecting a clique of modules at a 90-degree angle.
- Handles to allow transport by crane or overhead crane.
