SON-R

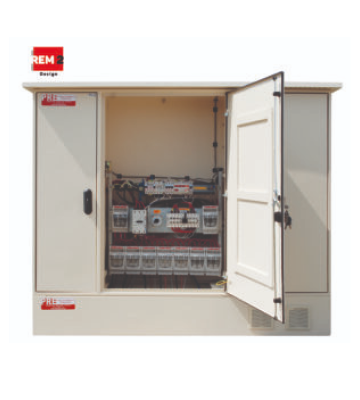

Street lighting cabinets with remote control and power limitation system

The system makes it possible to reduce the amount of energy consumed through the use of independent types of diffuse and central reduction, while maintaining all the lighting parameters specified by the standards. The solution works with all types of light sources (mercury, sodium, metahalogen, fluorescent, LED). The system provides advanced control and remote supervision of lighting by means of the LIS controller and additional modules that expand its functionality.

Application

  • Advanced and remote control and supervision of street lighting through a comprehensive management system.
  • Reducing energy consumption in lighting.
  • Measurement and distribution of electricity and protection of lighting circuits of streets and traffic routes, public places, highways, industrial plants.
  • For low-voltage networks of the following types: TN-S, TN-C, TN-C-S.

Power supply and measurement part

  • Pre-metering protection – fuse disconnectors, overcurrent circuit breakers up to 63A (1P, 3P) other protections selected according to the requirements of the Recipient.
  • Power terminal strip with cross-section up to 4/5 x 35mm2 (TN-S, TN-C), screw or allen clamp.
  • Surge protection.
  • Metering board suitable for installation of single or three-phase active energy meters.
  • Space for modem, tariff timer.
  • Cover plates suitable for sealing.
  • Documentation pocket.
  • V-type (VLM) or M-type (screw) cable clamps for power cable – 2x4x240mm2, receiving cable – 4x120mm2.
  • Cable holders.

Control and drainage part

  • Box fuse disconnector – the main protection of the control and drainage part, allowing to obtain a visible break necessary for maintenance work.
  • Low-voltage current transformers – measurement of parameters (A, V, P, Q, S, cos), plugged into the terminals of the controller.
  • Astronomical timer / controller / twilight switch.
  • Signaling and control overcurrent protection – provides visualization of the presence of voltage on the power supply and the correctness of the control.
  • Mode switch (automatic, manual, cascade).
  • 230 V service outlet, outlet overcurrent protection.
  • Surge protection.
  • Cabinet lighting – controlled by limit switches connected to the controller.
  • Cabinet heating – controlled by a thermostat with temperature setting.
  • Single/triple-pole contactor with current adapted to the load, installed on each drain circuit or group of drain circuits – switching on and off lighting circuits in different configurations.
  • Outlet circuits – fuse disconnectors up to 160A ( D01, D02, 00) or overcurrent circuit breakers up to 63A (1P, 3P).
  • Drain clamps up to 5x120mm2 for allen/screw key.
  • Cable holders.
