Low voltage

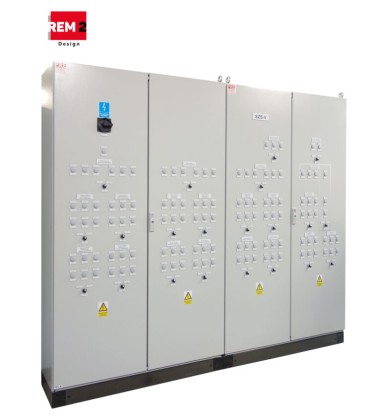

SSA – Control and automation cabinets
We use apparatus of many leading and proven manufacturers. Switchgears are equipped with the following apparatus: protection, distribution, measurement, signaling, control, communication and other additional elements selected according to individual customer needs.
Application
- To control the operation of motors, pumps, drives, PLC for industrial and non-industrial facilities.
- For HVAC ventilation and air-conditioning processes.
- For control, monitoring, BMS systems.
- Protection of electrical equipment against the effects of short circuits and overloads on the LV side.
Equipment
- Housing made of aluminum or steel sheet (joining by welding), powder-coated in any color, in the following versions: surface-mounted, flush-mounted, free-standing, wall-mounted, hanging. Available in a version with increased IP or high resistance to temperature and fire (FIREBOX). Full freedom of configuration of construction, opening. Dimensions adapted to the type, amount of equipment and individual customer needs. The design and parameters of the enclosures allow the installation of apparatus up to 630 A. The enclosure has a standard mounting profile or mounting plate, on which apparatus are placed for permanent mounting on the plate and TH35 rails for mounting modular apparatus and strip connectors.
- Masking plates are made of plastic plates or metal sheets, mounted to the enclosure structure by means of masking plate brackets. They can be used interchangeably with comb trays, with a cross-section adapted to the amount of wiring. Solid or transparent doors have internal or external hinges and multi-point locking. It is possible to mount signaling and measurement apparatus on the door. The enclosure is equipped with a basquil, fin lock with any shape of the insert.
- The roof and bottom of the enclosure have an opening with brush grommets or a profiled rubber grommet membrane or glands to allow cable entry without lowering the IP rating. The enclosures provide high tightness from IP 40 to IP 66, mechanical resistance from IK 06 to IK 10, class I or II protection. Thanks to the use of the whole range of enclosures, we have full freedom in the selection and configuration of the switchgear we are interested in.
Indications
- External marking of switchboards is made by laser engraving technique, on metal or plastic plates of any color. Apparatus and strip connectors marked according to the internal wiring diagram and according to design guidelines.
Frequently asked questions
What is your delivery time?
Standard delivery time is approximately 6-8 weeks depending on the order. Please contact us to arrange a more detailed delivery date.
What effects do your charging stations have?
We offer an extensive range of products, encompassing both AC and DC EV chargers featuring diverse equipment configurations and power outputs. The power spectrum of our EV chargers includes:
- AC 3.7-43 kW
- DC 40-480 kW
Who installs charging stations?
Charging stations are only installed by Swedish certified electricians.
How fast do your stations charge?
The fastest DC chargers can charge a car in up to half an hour. Charging time for electric vehicles depends on:
- EV charger power
- battery capacity
- the power of the converter installed in the car.
Which station is best for private use?
The best choice for private use are small stations such as:
- EVB E-wall - mounted in the wall not only makes it much easier to use, but also blends almost seamlessly into the façade and improves its aesthetics.
- EVB Wallbox 2M AC - it can be hung on the wall in the garage, thanks to which it takes up little space and can charge two cars at the same time. Charging point power up to 22 kW.
How is the advertising content on EVB Adverts charging stations managed?
Advertising content on EVB Advert chargers is managed using the Digital Signage Android Player. It is an extremely functional software for remote management of content on the monitor. The software allows you to manage content from any place with Internet access - just log in to the relevant website, upload videos, images, webpages, RSS feeds, remote content, divide the screen into any number of screen areas of any size and position, and much more. The big advantage of Central Stacks software is that the server is in the cloud, so the client does not need to install and maintain it on its side, and therefore the content of any connected media can be managed anywhere and on any device by logging into the server through a web browser.
Our billing model for Central Stacks licenses is also very simple and transparent, unlike many other systems on the market, since the annual license price already includes all the costs incurred by the customer for the system including server maintenance, etc., so at each stage of the project the customer knows exactly how much it will cost him to expand the DS network with additional installations.
How to settle accounts with charger users?
Our stations are equipped with a measurement and billing system, which enables quick settlement with the customer. Settlements are made via mobile applications, RFID cards or a payment terminal.
What is the difference between charging a car with AC and DC?
In the simplest terms, the key distinction lies in the charging speed of the vehicle. In the case of alternating current (AC), the EV is usually charged slower compared to direct current (DC), because the alternating current needs to be converted, and the charging speed depends on how much current the wallbox can supply and how much current the vehicle battery can handle. Charging with alternating current is the most popular method of charging electric vehicles and is widely used, among others, while charging at home.
DC charging, on the other hand, is a faster charging option often used in public places using chargers with higher power outputs. Unlike AC charging, DC charging delivers direct current to the vehicle battery without a conversion process. The type of charging station you should install depends entirely on your needs and specific requirements. In public areas such as parking lots, a combination of AC and DC charging can provide a pragmatic solution to meet the diverse needs and preferences of different guests.
Are you nationwide?
Yes, we provide installations throughout Sweden, as well as in Europe.
