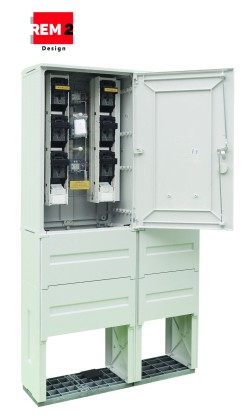

ZPP-P – Semi-direct measuring sets

Application

  • To low-voltage distribution cable networks.
  • Electricity distribution and protection of electrical equipment from the effects of short circuits and overloads on the LV side.

Housing

  • Thermosetting plastic: The housing is made of SMC plastic with IP 44 or 54. In the II protection class, with a flammability class from HB to V0, in RAL 7035 color, with the possibility of additional varnishing for temporary resistance to environmental effects and UV radiation.
  • Aluminum OU-2: Housing made of aluminum sheet (joining by welding or riveting). Powder coated in any color. Dimensions adapted to the type, amount of equipment and individual customer needs. The housing has high resistance to degradation, environmental impact and UV radiation. The housing is made in protection class I or II.
  • Housing in protection class II is achieved by applying an additional insulating layer, permanently lined on the inner and outer surfaces of the housing. The thickness of the layer ensures the right degree of insulation.
  • Ventilation allows constant air flow through the use of a ventilation labyrinth, while eliminating the penetration of dirt and the accumulation of water and moisture.
  • Doors having internal hinges with anti-breakout catch and multi-point locking, basquil lock lockable with padlock or system cylinder.

Supply and drainage part

  • Power supply made by separate terminals of type V or VLM for two cables up to 4×240 mm2.
  • Supplying strip and box fuse disconnectors or power circuit breakers: 400/630/910/1250 A.
  • Drain disconnectors or fuse bases of strip and box fuses: 160/250/400/630/910 A.
  • Space for current transformers for the measuring and balancing part.

Measuring and balancing part

  • Measuring and balancing part tailored to individual requirements.
  • Metering board suitable for mounting active and reactive energy meters mounted on an insulating plastic plate, made in a tilting or fixed version.
  • Control and measurement strip designed to connect voltage and current circuits of electricity meter with secondary circuits of measuring transformers, available apparatus: Ska, LPW, others.
  • Remote reading of meter data via GPRS wireless network or fiber optic cable.
  • The place intended for the installation of a concentrator – a system for the acquisition and transmission of measurement data in the selected Smart Grid & Smart Metering technology.
  • Sealable components.

Gear part

  • Current transformers matched to the transformer load, in class 0.2s – 1, mounted on the bus or cable, behind the main protection of the set. It is possible to mount transformers on each outlet circuit.
  • The equipment of the ZPP-P sets is selected according to the requirements of the distribution companies and at the request of the customer.
