Medium voltage
Pole-mounted MV/LV transformer stations
The stations are designed to supply rural, urban-neighborhood and small-scale industry consumers from a 15 kV or 20 kV medium voltage overhead or cable network.
Design
- The station structure is based on E-type spun prestressed concrete poles. It is founded by means of plate or well-shaped stopes.
- The substation’s support structure is adapted to fulfill, to a limited extent, the function of a curb pole for medium- and low-voltage lines.
- The power supply from the overhead line can be made with AFL 6-35 (50, 70) wire or insulated wire of 35 (50-70) mm2. The station can use transformers of various types without a maintainer with a capacity of up to 630 kVA.
- The new generation of MV/LVpole stations takes into account the use of new materials and equipment, as well as new operational requirements, aimed at simplifying operation and increasing operational safety.
Supply of MV side
- AFL bare wires 6-35; 50;(70).
- 35;50;(70) insulated cables.
- Three-core cables.
- Single-coating.
- Single-conductor cables with polyethylene insulation and small sheath.
Transformer power
- Typical up to 250 kVA.
- 400 kVA
- Up to 630 kVA – max. weight of the transformer 2500 kg.
Insulation
- LWP 8-24, LWP 8-245, LWZ 8-24 standing insulators.
- LP 60/5u, LP 60/8, CS70AA20, CS70AA30, HASDI, SDI pendant insulators.
LV switchgear

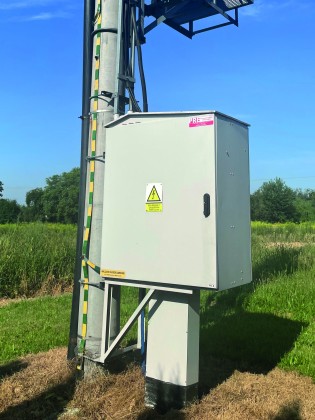

- RST switchgear up to 1250A in an aluminum enclosure in the I or II protection class, equipped with the following modules: power supply and drainage, measurement and balancing, site lighting. Pole-mounted switchgear attached to the station or cable-mounted on the foundation next to the station.
