Low voltage

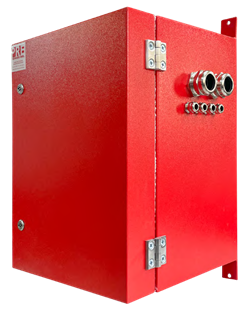

FIREBOX - Fire resistant switchgears
The FIREBOX design has met the restrictive requirements. It is each time designed individually to the needs of the customer. It is made of several layers of properly profiled steel sheeting joined by welds. Between the layers there is a thermal layer of appropriate structure and thickness, responsible for containing high temperatures during a fire.
FIREBOX structure is made in the version for surface mounting. Painted with powder varnish in any color according to RAL palette.
Application
- Fire protection of all installations, including fire protection systems, automation and electrical apparatus from the effects of very high temperatures, during a fire in all types of construction.
- Reducing construction costs and reducing the area of the building required to separate the fire zone.
- Provide a safety system for the facility by containing the onslaught of flames and hot gases.
- Protection of industrial process apparatus in harsh working conditions (high temperature, gases).
- Provides fireproofing and thermal insulation around 40 – 140 degrees C inside the enclosure at ambient temperatures above 1000 degrees C.
Advantages
- The FIREBOX system of switchgear enclosures is an ideal small-sized solution for fire protection of all installations, apparatus, equipment and safety systems of buildings and industrial facilities against high temperatures (up to 1000 deg C) and gas penetration during a fire. Inside the enclosure, the temperature is maintained between 40 and 140 degrees C.
- The housing allows the selection and use of any apparatus, thanks to the possibility of making it to any size. The use of special glands allows the introduction of cables of different cross-sections.
- With FIREBOX enclosures, we reduce construction costs AND save the area of the facility necessary to separate the fire zone.
Construction
- The lower and upper parts of the FIREBOX are equipped with removable lids, which allow to install two-piece brass glands of MDW type. It is possible to insert cables of any cross-section through the glands. After inserting the wiring into the enclosure it is necessary to seal the glands with additional fire protection sealant, as recommended.
- The door is made in exactly the same way as the walls and back of the enclosure, which ensures even temperature distribution throughout the structure and limits temperature rise inside the enclosure. Right-hand and left-hand doors are possible. The doors allow easy work inside the enclosure and are equipped with compatible locks and hinges. FIRBOX enclosure is equipped with an interior door with the possibility of installing any lock.
- The housing is designed for wall mounting. It is mounted with wall brackets on both sides of the housing, equipped with screw holes. The spacing of the brackets is arbitrary.
Frequently asked questions
What is your delivery time?
Standard delivery time is approximately 6-8 weeks depending on the order. Please contact us to arrange a more detailed delivery date.
What effects do your charging stations have?
We offer an extensive range of products, encompassing both AC and DC EV chargers featuring diverse equipment configurations and power outputs. The power spectrum of our EV chargers includes:
- AC 3.7-43 kW
- DC 40-480 kW
Who installs charging stations?
Charging stations are only installed by Swedish certified electricians.
How fast do your stations charge?
The fastest DC chargers can charge a car in up to half an hour. Charging time for electric vehicles depends on:
- EV charger power
- battery capacity
- the power of the converter installed in the car.
Which station is best for private use?
The best choice for private use are small stations such as:
- EVB E-wall - mounted in the wall not only makes it much easier to use, but also blends almost seamlessly into the façade and improves its aesthetics.
- EVB Wallbox 2M AC - it can be hung on the wall in the garage, thanks to which it takes up little space and can charge two cars at the same time. Charging point power up to 22 kW.
How is the advertising content on EVB Adverts charging stations managed?
Advertising content on EVB Advert chargers is managed using the Digital Signage Android Player. It is an extremely functional software for remote management of content on the monitor. The software allows you to manage content from any place with Internet access - just log in to the relevant website, upload videos, images, webpages, RSS feeds, remote content, divide the screen into any number of screen areas of any size and position, and much more. The big advantage of Central Stacks software is that the server is in the cloud, so the client does not need to install and maintain it on its side, and therefore the content of any connected media can be managed anywhere and on any device by logging into the server through a web browser.
Our billing model for Central Stacks licenses is also very simple and transparent, unlike many other systems on the market, since the annual license price already includes all the costs incurred by the customer for the system including server maintenance, etc., so at each stage of the project the customer knows exactly how much it will cost him to expand the DS network with additional installations.
How to settle accounts with charger users?
Our stations are equipped with a measurement and billing system, which enables quick settlement with the customer. Settlements are made via mobile applications, RFID cards or a payment terminal.
What is the difference between charging a car with AC and DC?
In the simplest terms, the key distinction lies in the charging speed of the vehicle. In the case of alternating current (AC), the EV is usually charged slower compared to direct current (DC), because the alternating current needs to be converted, and the charging speed depends on how much current the wallbox can supply and how much current the vehicle battery can handle. Charging with alternating current is the most popular method of charging electric vehicles and is widely used, among others, while charging at home.
DC charging, on the other hand, is a faster charging option often used in public places using chargers with higher power outputs. Unlike AC charging, DC charging delivers direct current to the vehicle battery without a conversion process. The type of charging station you should install depends entirely on your needs and specific requirements. In public areas such as parking lots, a combination of AC and DC charging can provide a pragmatic solution to meet the diverse needs and preferences of different guests.
Are you nationwide?
Yes, we provide installations throughout Sweden, as well as in Europe.
