Low voltage

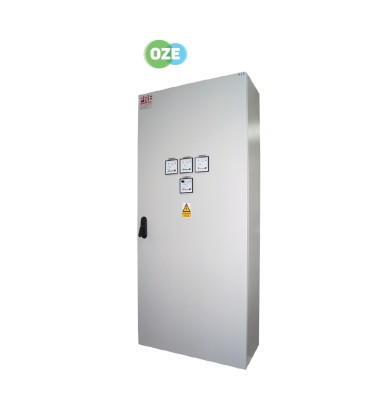

RPV – Photovoltaic switchgear
Application
- For photovoltaic farms and installations.
- Protection of electrical equipment against the effects of short circuits and overloads.
- Distribution and measurement of electricity sent for distribution.
- For DC (1000 V) and AC (500 V) networks.
Types available
- Solar panel switchgear – designed for PV generators mounted on the solar panel structure or building wall, equipped with overcurrent and overvoltage apparatus and letter plug connectors. Powered by direct current.
- Inverter switchgear – designed for DC/AC inverter, wall-mounted, equipped with overcurrent protection apparatus and letter plug connectors, supplied with AC power from the inverter.
- LV network switchgear, e.g. RM 630 – designed for distribution, measurement, protection and transmission of acquired energy to the distribution network.
Housing
- Thermosetting plastic: The housing is made of SMC plastic with IP 44 or 54. In the II protection class, with a flammability class from HB to V0, in RAL 7035 color, with the possibility of additional varnishing for temporary resistance to environmental effects and UV radiation.
- Aluminum OU-1/OU-2 or Steel OU-1/OU-2: Housing made of aluminum sheet (joining by welding or riveting). Powder coated in any color. Dimensions adapted to the type, amount of equipment and individual customer needs. The housing has a high resistance to degradation, environmental impact and UV radiation. The housing is made in protection class I or II. Class II protection is achieved by applying an additional insulating layer, permanently lined on the inner and outer surfaces. The thickness of the layer ensures the proper degree of insulation.
- Ventilation allows constant air flow through the use of a ventilation labyrinth, while eliminating the ingress of dirt and the accumulation of water and moisture. Doors having internal hinges with anti-burglary catch and multi-point locking, basquil lock lockable with padlock or system cylinder.
Mounting components
- Mounting plate – made of plastic or galvanized steel, mounted on vertical mounting profiles made of galvanized sheet metal under the current track insulators.
- Mounting profiles – steel, hole-punched, mounted to the housing structure.
- Cable holders with mounting bar.
- Masking plates – made of plastic plates or metal sheets, mounted to the housing structure.
Accessories
- Wall bracket (for panel construction) – made of profiled sheet metal, allows the housing to be mounted on the solar panel structure or building wall (applies to: OU, OIP).
