Low voltage

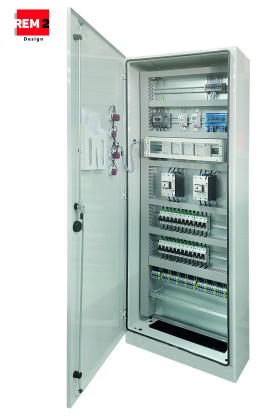

SZR – Reserve switching cabinets
Application
- Sustaining power supply in facilities and networks requiring continuity of power supply, due to the sensitive location and functions performed.
- Switching power sides, according to the set configuration.
- Meeting power supply reliability requirements.
- Electricity distribution and circuit protection on the LV side.
- Protection of electrical equipment against the effects of short circuits and overloads.
Housing
- Thermosetting plastic: The housing is made of SMC plastic with IP 44 or 54 in II protection class, with flammability class from HB to V0, in RAL 7035 color, with the possibility of additional painting to ensure temporary resistance to environmental effects and UV radiation.
- Aluminum OU-2: Housing made of aluminum sheet (joining by welding or riveting). Powder coated in any color. Dimensions adapted to the type, amount of equipment and individual customer needs. The housing has a high resistance to degradation, environmental impact and UV radiation. The housing is made in protection class I or II. Class II protection is achieved by applying an additional insulation layer, permanently lined on the inner and outer surfaces. The thickness of the layer ensures the proper degree of insulation.
- Ventilation allows constant air flow through the use of a ventilation labyrinth, while eliminating the ingress of dirt and the accumulation of water and moisture. Doors having internal hinges with anti-burglary catch and multi-point locking, basquil lock lockable with padlock or system cylinder.
Primary and backup power source
- Depending on the power present; contactors or circuit breakers / disconnectors, additionally equipped with protection in the form of fuse disconnects: 20 to 450A – contactors; 40A to 6300A – circuit breakers and disconnects.
- Clutch – provides safe power switching depending on the power present: contactor or circuit breakers/motor switches.
- Automatic control system SZR – prepared to operate contactors or circuit breakers, provides automatic switching between primary and standby power, setting any delay and time setting, switching interlocks to avoid parallel operation.
- Automation systems used: PRE (own module), MA-0A, MSR, MAX, others. All switches are set according to scheduled diagrams. The delay time setting can be adjusted in the range of 0,2-30s and 20-180s. It is possible to control automatically or manually.
